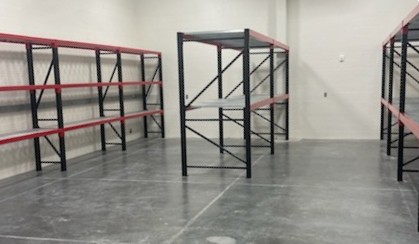

Pallet Rack Weight Capacity: How Much Can Your Racks Hold?
"How much weight can my pallet racks hold?" is one of the most common questions in warehouse operations, and the answer is never a single number. Pallet rack weight capacity depends on multiple factors: beam size, upright gauge, frame height and depth, the number of beam levels, and how the system is configured. Here is how to determine the actual capacity of your system and avoid the mistakes that lead to overloading.
Beam Capacity vs. Frame Capacity
There are two separate capacity ratings that matter, and they work together:
Beam Capacity
Beam capacity is the maximum weight that a pair of beams can support at a single storage level. This is the number most people think of when they ask about rack capacity.
Typical beam capacity ranges for standard selective pallet racks:
- Light-duty beams (3" to 4" face): 2,000 to 4,000 lbs per pair
- Standard beams (4" to 5" face): 4,000 to 7,000 lbs per pair
- Heavy-duty beams (5" to 6" face): 7,000 to 12,000+ lbs per pair
Beam capacity depends on the beam's cross-section dimensions, steel gauge, and the span between uprights (the wider the span, the lower the capacity for the same beam). For related guidance on clearance dimensions, see our pallet rack spacing requirements guide.
Frame (Upright) Capacity
Frame capacity is the total weight that a single upright frame can support across all beam levels connected to it. This is the number people often overlook.
An upright frame with a beam capacity of 5,000 lbs per level and 4 levels of storage does not automatically have a 20,000 lb frame capacity. The upright's capacity is determined by its height, depth, steel gauge, and bracing pattern, and it may be less than the sum of all beam levels.
This is why capacity must be calculated as a system, not just by beam level.
How to Read a Load Placard
Every pallet rack system is required to display load placards that show the rated capacity for each beam level. A properly formatted load placard shows:
- Maximum weight per beam level (per pair of beams)
- Beam and frame specifications (size, gauge)
- Number of levels and their heights
- Total maximum load per upright frame
If your racks do not have load placards, or the placards are missing or illegible, this is a code violation that will be flagged during any safety inspection. Missing placards are also one of the top reasons racking fails inspection. Replacing or installing load placards is one of the simplest and most important compliance items.
Important: Load placard values are calculated for a specific configuration. If you add beam levels, change beam sizes, or modify the rack height, the placards must be recalculated and replaced.
Factors That Affect Capacity
Several variables determine your system's actual rated capacity:
Beam Span
The distance between uprights (typically 8 to 12 feet) directly affects beam capacity. A beam that supports 6,000 lbs across an 8-foot span might only support 4,500 lbs across a 12-foot span. Longer spans reduce capacity because the beam must resist greater bending forces.
Upright Height and Depth
Taller uprights have lower capacity than shorter ones of the same gauge and depth, because height increases the risk of buckling under compressive loads. Deeper frames (front-to-back dimension, typically 36" to 48") generally provide greater stability and capacity.
Number of Beam Levels
Adding more beam levels increases the total load on each upright frame. If you add levels to an existing system, the frame capacity must be verified to ensure it can handle the additional weight.
Seismic Zone
In earthquake-prone areas, seismic engineering calculations reduce the effective capacity of a racking system because the structure must resist lateral forces in addition to vertical loads. A rack system rated for 5,000 lbs per level in a non-seismic zone may be rated lower in California or other high-seismic regions.
Floor Slab Condition
The concrete floor slab must support the concentrated point loads from rack columns. If the slab is thin, cracked, or deteriorated, it may not support the full rated capacity of the racking above it. Floor condition also affects anchor holding strength. A structural assessment of the slab should be part of any new installation or major reconfiguration.
Capacity for Other Rack Types
While selective pallet racks are the most common, other systems have different capacity characteristics:
- Drive-in racks: Higher total density but lower capacity per position due to the structural design. Rails replace beams, and the entire structure is interdependent.
- Push-back racks: Capacity per lane depends on the cart system and the depth of storage (2 to 6 pallets deep).
- Cantilever racks: Arm capacity (per arm) and column capacity (total per column) are the key ratings. Arms are rated individually, typically 500 to 3,000 lbs per arm.
- Pallet flow racks: Lane capacity depends on the roller system, pitch angle, and total lane depth. Speed controllers and brake systems affect how much weight can safely flow through a lane.
How to Avoid Overloading
Overloaded racks are dangerous and more common than you might think. Follow these practices:
- Post load placards at every bay and make sure they are visible from the aisle
- Weigh incoming pallets or use a reliable average weight based on your product data
- Train forklift operators to check load placards before placing pallets
- Never modify the rack (adding levels, changing beams) without recalculating capacity
- Inspect regularly for signs of overloading: bent beams, deflection in the middle of a beam span, or leaning uprights
If you suspect your racks may be overloaded, or if you have added levels or products without recalculating, a professional safety inspection can assess the situation and provide updated capacity ratings.
Getting Capacity Right From the Start
The best time to address capacity is during the design phase, before anything is installed. When you start with a proper engineering analysis that accounts for your product weights, pallet dimensions, storage heights, and seismic zone, every component is sized correctly and every load placard is accurate from day one.
