Warehouse Layout Design: A Complete Guide

Most warehouse layout design articles read like CAD tutorials. Start with grid lines, end with a pretty drawing, and somewhere in between the word "efficiency" appears 40 times.

What's missing is the part that matters: the layout has to survive a fire marshal, a forklift turning radius you didn't account for, and the first peak season after you move in. We've designed and installed layouts in facilities from 10,000 to 400,000 square feet. Some were beautifully drawn on paper and painful to work in. A few were rough sketches that turned out to be dead right. The difference is almost never the software.

This is how to think about warehouse layout design from the floor up, not the CAD file down.

What warehouse layout design actually covers

It's easy to confuse layout design with racking layout. Racking is one piece of the puzzle. A real layout plan covers:

• Functional zones and how work moves between them
• Racking and shelving selection, orientation, and sizing
• Aisle widths, cross-aisles, and fire exits
• Dock door positions and staging footprints
• Pick paths and travel distance
• Utilities: sprinkler coverage, lighting, electrical drops, charging stations
• Permit and code compliance constraints that shape the rest

If you're only laying out rack, you're designing for storage. If you're designing for operations, you're doing layout.

The 5 zones every warehouse needs

Every operation resolves down to the same five functional zones. The proportions and shapes change, but all five have to exist somewhere:

• Receiving. Where trucks unload and inventory enters the building. Needs dock doors, staging floor, QC or inspection space, and a direct path to storage.
• Storage. The bulk of the building footprint. Pallet racking, shelving, bulk areas, mezzanines. Usually split between reserve storage (deep backup inventory) and pick storage (where orders are filled).
• Picking. Where orders get pulled. Can live inside storage (pick-from-rack) or in a dedicated pick module. The velocity of pick activity determines the design: full-pallet, case, or each pick.
• Packing. Where orders get consolidated, boxed, and labeled. Needs worktables, packing material storage, scale stations, and a short path to shipping.
• Shipping. Where orders leave the building. Staging lanes, shipping doors, carrier sort, sometimes an outbound truck queue.

Two more zones show up in most modern facilities:

• Returns processing — increasingly its own zone, not a corner of receiving
• Value-add services — kitting, labeling, light assembly; often positioned between picking and packing

Measurements to pull before you draw anything

You can't design a layout without the building's constraints. These are the measurements that shape every downstream decision:

• Overall dimensions (length and width in clear floor dimensions, not exterior)
• Clear height to lowest obstruction (usually the sprinkler deflector or bottom of steel joists)
• Column grid (typical warehouses use 40' × 40' or 50' × 50' bays; columns dictate where aisles can go)
• Floor condition (flatness rating, joint placement, and load capacity the slab can actually support)
• Dock door count and positions (you design around these, not the other way around)
• Fire sprinkler type (ESFR, in-rack, or conventional — changes max storage height and rack configuration)
• Commodity class (Class I through IV plus high-hazard; determines aisle spacing, flue space, and permitted storage heights)
• Seismic zone (California, Pacific Northwest, parts of the Midwest; changes base plate and anchoring specs)
• Electrical drops and utility positions (where power and data already run)

If you don't know these, you're guessing.

Racking selection drives everything else

Most people think of racking as a detail inside the layout. It's the opposite. The racking system you choose sets the aisle widths, the cross-aisle frequency, the permit requirements, and whether the building can support your throughput at all.

A quick reference:

• Selective pallet rack — 10-12 ft aisles, every pallet accessible, lowest density, highest flexibility
• Double-deep — 10-12 ft aisles, higher density, requires deep-reach trucks
• Drive-in / drive-through — no aisles inside the rack, very dense, LIFO or FIFO, limited SKU count
• Push-back — no aisles inside, denser than selective, LIFO only, one SKU per lane
• Pallet flow (gravity) — FIFO, dense, dynamic, best for high-turnover uniform product
• Pallet shuttle (semi-automated) — FIFO or LIFO, very dense, works in single-deep aisles
• Mobile rack — rack on powered carriages, one aisle opens at a time, 80%+ cube utilization

You don't pick one and force the layout around it. You pick based on what the operation stores and how fast it turns, then design the building around that.

Aisle widths by truck type

Aisles are where space goes to die. Every extra foot of aisle width across a 200,000 sq ft building translates to real lost pallet positions.

But aisles have to be wide enough for the equipment that actually works in them. Typical clearances by truck type:

• Standard counterbalance forklift — 12-13 ft aisle minimum
• Reach truck — 8-10 ft aisle
• Double-deep reach truck — 9-11 ft aisle (pantograph extending to reach back pallet)
• Swing-mast — 6-7 ft aisle
• Turret truck / VNA (very narrow aisle) — 5-6 ft aisle, usually wire-guided or rail-guided
• Articulated truck (Bendi, Flexi, Aisle-Master) — 6-7 ft aisle, works on a standard warehouse floor
• Walkie stacker — 6-7 ft aisle, pedestrian-operated, lower lift height

The trade-off: narrower aisles store more, but the trucks that work in them cost more. A VNA turret can triple the per-truck capital cost of a standard reach truck. In a facility running 15 trucks, that adds up, enough that the break-even against lost pallet positions needs actual math before you commit.

Flow patterns: how receiving gets to shipping

Layout flow determines how far product travels through the building. Three patterns cover most facilities:

Straight-through (I-shape). Receiving at one end, shipping at the opposite end. Product moves one direction through the building.

• Best for: high-volume, fast-turning operations, cross-dock
• Downside: requires two ends of the building set up for docks, and returns have a long path back to storage
• Typical examples: large e-commerce fulfillment, food distribution DCs

U-shape (horseshoe). Receiving and shipping share the same wall, often sharing dock doors. Product enters, loops through storage, and exits the same side.

• Best for: smaller facilities, buildings with limited dock doors, operations with shared receiving/shipping staff
• Downside: cross-traffic between inbound and outbound flow can create bottlenecks
• Typical examples: most mid-size distribution in the 50,000 to 200,000 sq ft range

Modular / zoned. Multiple flow paths for different product types or processes. E-commerce on one flow, wholesale on another, returns on a third.

• Best for: multi-client 3PLs, omnichannel retail, facilities with value-add services
• Downside: harder to design, harder to staff
• Typical examples: most 3PL operations, retail backrooms handling both store replenishment and DTC fulfillment

Pick the flow first. The zone layout follows.

Size it before you commit — try the calculator

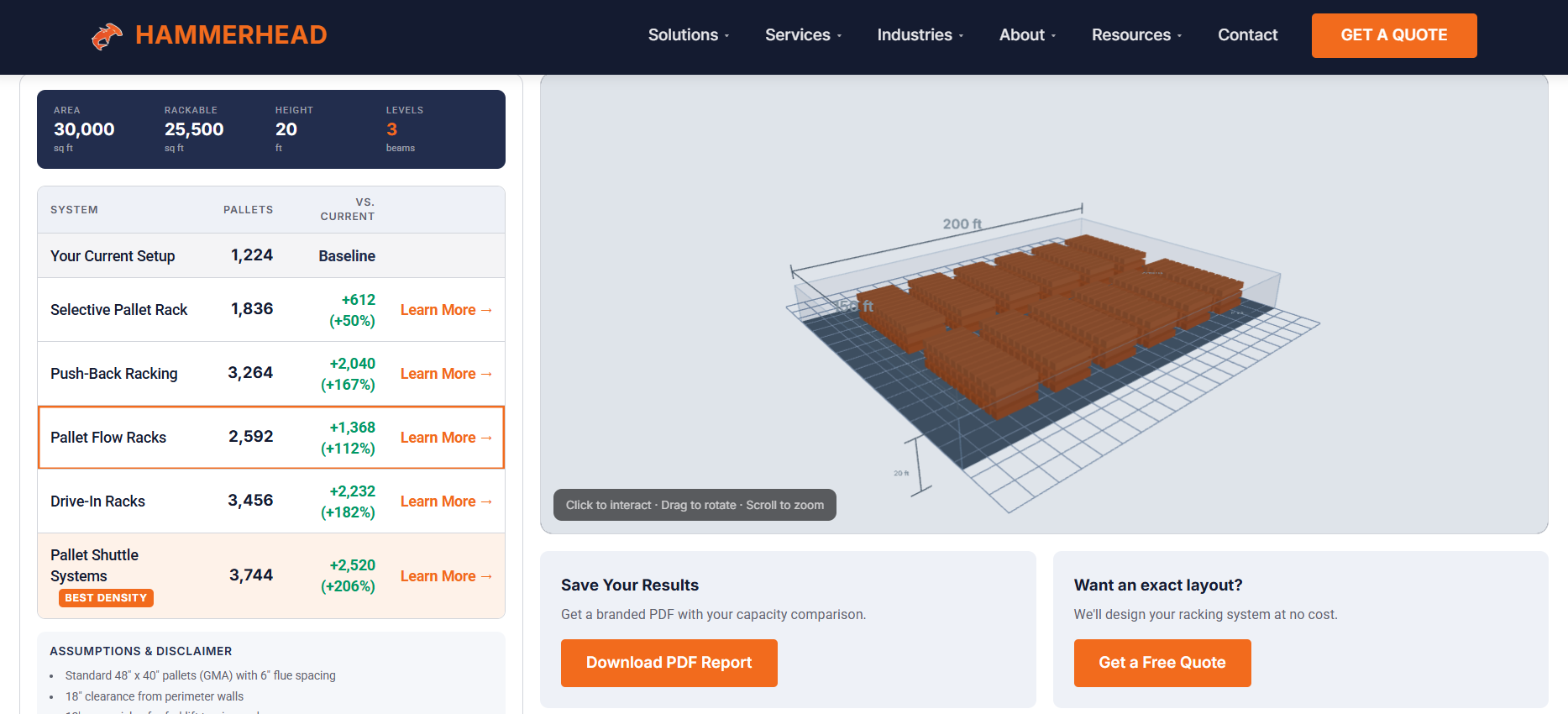

Before you pay for a design, know what fits. Our warehouse pallet capacity calculator takes your building dimensions and rack type and returns a live 3D layout with pallet counts, aisle widths, and cross-aisle placement.

It's not a substitute for engineered drawings, but it's an honest answer to "can I fit X pallets in my building" in under two minutes. If the calculator says your 40,000 sq ft building holds 2,400 pallets with selective rack and you need 3,500, you know two things up front: you need denser rack (drive-in, push-back, shuttle), or you need more building.

The mistakes that cost you space

These are the ones we see most often. None are exotic. All are expensive.

Dead corners. Forgetting that rack doesn't turn corners. Each unconfigured corner eats 4-8 pallet positions. Four corners is 16-32 positions lost for the life of the facility. That's 10-20% of a small warehouse.

Cross-aisles too narrow or too far apart. Fire code typically requires cross-aisles every 100-150 ft depending on commodity class. Skinny cross-aisles get flagged at inspection. Too few cross-aisles and your pickers walk half a mile per shift.

Receiving staging sized for average volume, not peak. Receiving backs up on Mondays, the day after holidays, and during returns season. Staging sized for average means pallets piled in aisles the other third of the year.

Fast movers parked in the back. The highest-velocity 20% of SKUs should sit in the shortest-travel positions between pick and pack. This is ABC slotting 101 and it still gets missed constantly.

Office and reception at the wrong end. Customers and drivers should enter through a secure, visible entry near receiving. Putting the office at the back of the building forces everyone to walk through the operation.

No growth room. Designing to 95% utilization on day one means reconfiguring inside of 18 months. 80-85% utilization leaves room to add SKUs, change product mix, and absorb seasonality.

Forgetting the battery room and charging stations. Electric forklifts need space, ventilation, and proximity to storage. Finding this out after the rack is already in is an expensive correction.

Permit implications in the layout phase

Layout design and permitting are intertwined. Rack over 5'9" in California needs a permit. High-pile storage — racks or piles over 12 ft for most commodities, 6 ft for high-hazard — triggers additional fire code requirements: in-rack sprinklers, smoke vents, flue space between pallets, and access aisles for fire department response.

These requirements shape the layout, not the other way around. If your plan has 24-ft tall rack and no flue space, the fire marshal sends you back to the drawing board. Better to know this in the layout phase than after fabrication.

See our guide to warehouse racking permits for what triggers what.

When to bring in a designer

You can sketch a small warehouse on graph paper and install it. Plenty of 10,000 sq ft facilities run on a hand-drawn plan. The threshold where professional layout design pays for itself:

• New facility or major expansion
• Racking that requires a permit (most installations over 5'9" in California; varies by jurisdiction)
• Anything automated (AS/RS, shuttle, conveyor, robotics)
• Throughput doubling or more
• Seismic zone and rack over 12 ft
• Multi-level mezzanine or pick module

The math isn't complicated. Professional design is a small fraction of what a single miscounted aisle or an unused wall will waste over the life of the facility. A few dozen pallet positions lost for fifteen years is almost always more than the cost of getting the layout right the first time.

We handle layout design as part of our design & layout service on projects we install. Standalone design engagements are quoted separately.

Frequently asked questions

How long does warehouse layout design take?

For a typical small-to-mid distribution facility (20,000-100,000 sq ft), expect 2-4 weeks from kickoff to stamped drawings. Larger or permitted projects run 4-8 weeks. Complexity drivers: permit requirements, multiple racking types, mezzanines, and the speed of stakeholder feedback.

Do I need CAD software to plan a layout?

For anything permit-required, yes. Engineers produce PE-stamped drawings in AutoCAD or similar. For early-stage planning and "can I fit this" questions, our warehouse calculator works without any software on your end.

How much does warehouse layout design cost?

A standalone design engagement scales with facility size, complexity, and permit scope. Ask for a scoped quote and you'll get a specific number. When we install the project, layout design is usually rolled into the total cost and the effective design fee is lower.

What's the most common layout mistake?

Designing for current throughput with no buffer. Warehouses fill to capacity faster than teams expect, and reconfiguring a live operation costs three to five times what it would have cost to build right the first time.

Can I change a layout after installation?

Yes, but expect cost and downtime. Moving rack involves tear-down, inspection, recalibration, and re-anchoring. For permitted installations, a new permit and drawings may be required. A relocation that requires full tear-down and re-anchoring can approach the cost of a fresh install, so plan accordingly.
