Narrow-Aisle Selective Pallet Racking (VNA)

Narrow-aisle and very-narrow-aisle (VNA) layouts are the one warehouse density lever that doesn't cost you access. Every other way to store more pallets per square foot, push-back, drive-in, shuttle systems, trades away selectivity. A narrow-aisle layout keeps standard selective pallet racking with 100% direct access to every position and shrinks the aisles instead, typically adding 30 to 50% more pallet positions in the same building.

The catch: the density doesn't come from the racking. It comes from the equipment, and the equipment brings strings attached. So this walks through the aisle math, the lift options, and the floor, height, and fire-code realities that decide whether the trade actually pays off for you.

Where the Density Comes From

Aisle width is the single biggest density lever after rack type, and equipment, not racking, sets the aisle. The progression:

• Counterbalance forklift: 12 to 13 ft aisles
• Reach truck: 8 to 10 ft
• Double-deep reach: 9 to 11 ft
• Swing-mast or articulated truck: 6 to 7 ft
• Turret truck (true VNA): 5 to 6 ft

Run the math. Go from a 12-foot counterbalance aisle to a 6-foot turret aisle in a 100-foot rack run and you free up 600 square feet per aisle. Repeat that down every aisle and the saved floor turns into more rack rows. In most layouts it lands between 30 and 50% more pallet positions, and the racking itself never changed.

VNA layouts also use height. Turret trucks lift into the 30 to 40 foot range and beyond, territory where standard counterbalance equipment can't operate, so a VNA conversion often gains beam levels as well as rows. Frame heights, beam spans, and the rest of the structural picture are covered in the pallet rack dimensions guide.

The Racking Stays Selective

This is the point that separates narrow-aisle from every high-density system: the rack is standard selective. Every position faces an aisle. You keep:

• 100% selectivity. Any pallet, any height, no double-handling.
• FIFO, LIFO, or lot-based rotation, because every position is independently addressable.
• Adjustable beam heights and full reconfigurability as your product mix changes.
• Mixed SKUs in adjacent positions, with no lane-dedication requirement.

If you're deciding between adding density through narrower aisles versus deeper lanes, the question is your SKU profile. High SKU counts and lot-controlled inventory want selectivity, which makes narrow-aisle the natural first lever. Concentrated volume in few SKUs may justify push-back or drive-in instead. Our selective racking explainer covers when selective is the right foundation in the first place.

What the Equipment Costs You

The density is real. So are the trade-offs, and they scale right up with how narrow you go.

• Equipment price. Turret trucks are specialized machines priced accordingly, and a VNA aisle usually can't be serviced by anything else. Most VNA operations keep at least one backup unit or a service arrangement, because a down truck can idle an entire aisle.
• Guidance. True VNA aisles at 5 to 6 feet leave inches of clearance, so turret trucks typically run in guided aisles, wire or rail, rather than free-steering. Guidance is part of the installation scope, not an afterthought.
• Floor condition. Tall masts in tight aisles magnify every slab imperfection. Turret trucks are less tolerant of uneven floors than standard equipment, so slab condition gets evaluated during layout design, and older floors sometimes need remediation in the aisle lanes.
• Operator skill. Narrow-aisle equipment demands more training than sit-down counterbalance. Budget for it.

None of this kills the case for narrow-aisle. It just has to be in the math up front. In expensive space, and conditioned space especially, the density you gain usually covers the equipment premium and then some.

Height, Fire Code, and Permits

The racking permits are the same as any selective installation, and we handle permit coordination on every project. What changes at VNA heights is the fire and code review around the rack:

• High-pile storage review applies above 12 feet of storage height, which every VNA layout exceeds.
• 30 to 40 foot frames usually mean ESFR or in-rack sprinklers, and stamped drawings with seismic engineering are standard at that height.
• Flue spaces and sprinkler clearances carry more scrutiny in tall, dense layouts. The full clearance set, including the 18-inch sprinkler deflector minimum, is in the spacing requirements guide.

Every system we install is engineered and PE-stamped for your jurisdiction, with permitting handled as part of the project, so these are design inputs rather than surprises.

When Narrow-Aisle Is the Right Move

Narrow-aisle selective is the strongest candidate when:

• Your SKU count is too high for lane-based dense storage, but you're out of floor space
• You need FIFO or lot-specific picking and can't give up direct access
• Your building has clear height you're not using, and taller frames plus VNA equipment would capture it
• You're in expensive or conditioned square footage where density pays

It's the wrong move when your volume is concentrated in few SKUs (deep-lane systems go denser), when the slab or building geometry fights guided aisles, or when the operation can't support the equipment investment.

Getting the Layout Right

A narrow-aisle conversion is four decisions at once: equipment, floor, fire code, and racking. Sequence them wrong and you redo work. Pick the truck first, always, because the truck sets the aisle and the aisle sets everything downstream. We design and engineer the layout, pull the permits, and install around the equipment you're actually going to run.

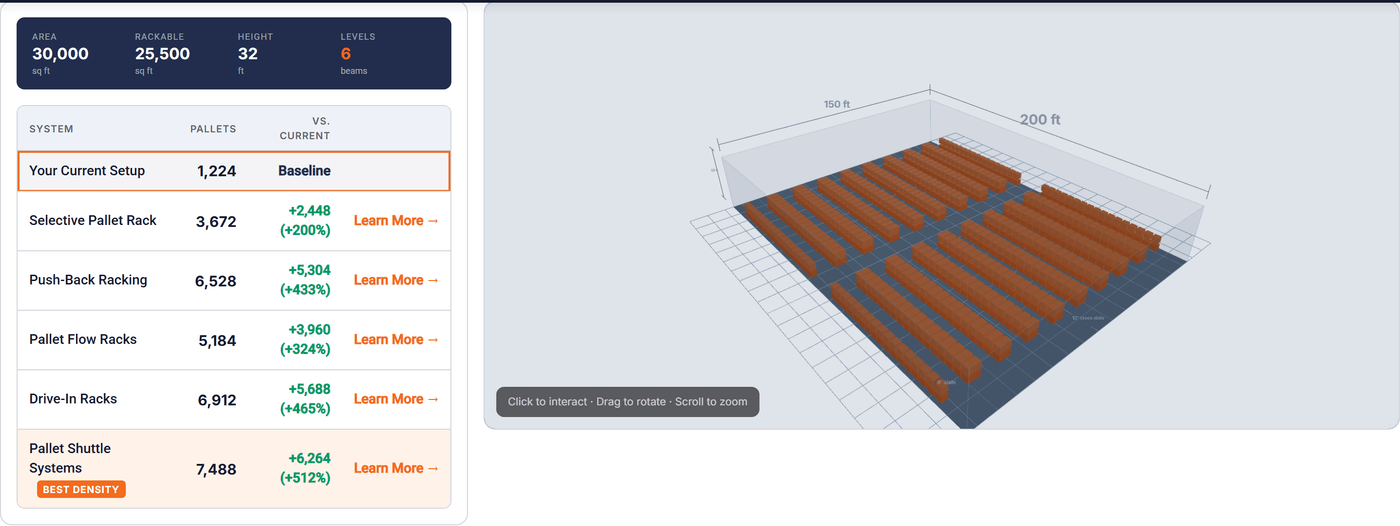

To see what different aisle widths do to your pallet count, run your building through our free capacity calculator, it compares 7 racking configurations with 3D visualization. The warehouse layout design guide covers the broader planning picture.

If you want the numbers run against your real slab, ceiling, and SKU profile, a facility assessment is the fastest path to a defensible answer.
