Stack Racks
Stack Racks: Stack the Rack, Not the Product
Portable steel frames that carry the weight of the units above them, so crushable, irregular, or awkward product can go vertical without anchoring anything to the floor.
Portable
Moved by forklift, loaded or empty
Free-Standing
Sits on the slab rather than bolting to it
Breaks Down

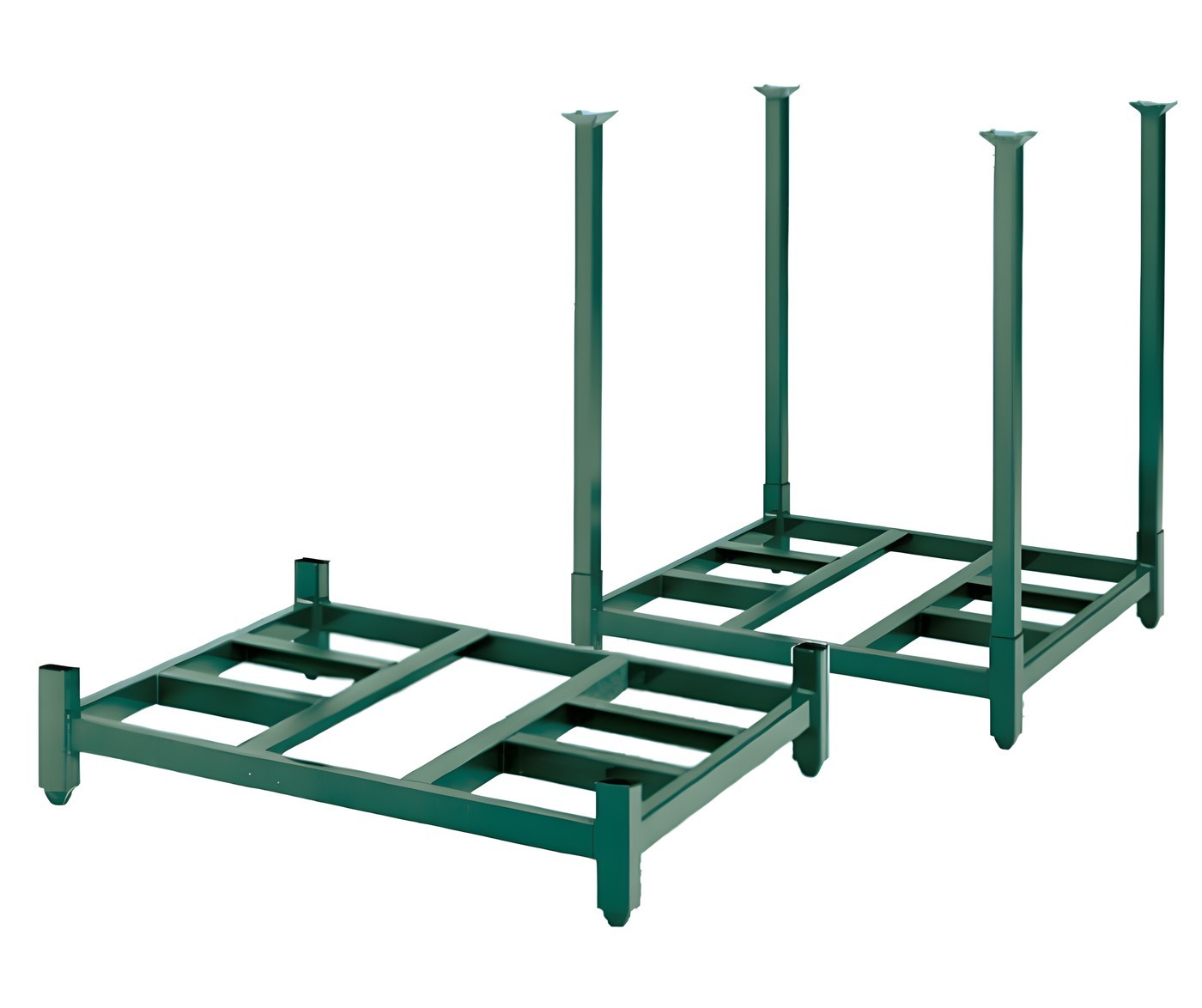

Posts come out so empty bases stack flat
A stack rack is a portable, freestanding steel storage unit: a base with a post at each corner, built so loaded units stack directly on top of one another and a forklift moves each one like a pallet. Nothing is anchored to the floor, and on most designs the posts come out so empty bases stack flat.
The Right Application
Where Stack Racks Beat Floor Stacking and Fixed Rack
Crushable or Irregular Loads
Product that cannot carry weight on top of it: bagged and soft-packaged goods, tires, rolled goods, castings, and odd-shaped parts. Floor stacking it means either crushing the bottom layer or wasting the height above it. A stack rack puts the weight of each level on the posts, not on the product underneath.
Seasonal and Overflow Storage
Inventory that swells for a few months and then shrinks. Loaded units stack while the space is full, and when the peak passes the posts come out and the empty bases stack in a fraction of the floor, instead of a row of fixed rack standing empty until next year.
Leased and Short-Term Space
Buildings where drilling the slab is not allowed, or where you do not expect to stay long enough for a permanent install to pay back. Stack racks leave with you on a truck.
Work in Process and Line-Side Staging
Parts and subassemblies that move between operations. The stack rack is both the storage and the container, so product moves by forklift from one step to the next without being re-handled at each one.
Returnable Containers Between Your Own Sites
Plants and warehouses that move parts back and forth can use stack racks as returnable containers: loaded at one end, emptied at the other, and sent back broken down.
Where Stack Racks Are Not the Answer
High SKU counts where any pallet might be needed next, or permanent density at building scale. Reaching the bottom unit means lifting off everything above it, so stack racks suit a few SKUs held in quantity. When every pallet needs its own position, selective pallet racks are the baseline.
Technical Specifications
Key Specs & Configuration
| What a Stack Rack Is | A steel base with a post at each corner. The top of each post receives the base of the unit above, so the stack lines up as it is built, and the base takes forks so each unit is handled like a pallet. |
| System Type | Portable storage, not installed rack. Units are freestanding, unanchored, and moved by forklift. Each stack is a column of units, so access within a stack is last in, first out. |
| Posts | Removable or fixed, in a range of heights chosen to clear the tallest load on the deck. Removable posts let empty bases stack flat between uses; fixed posts suit units that stay assembled. |
| Decks | Open frame for long loads that span the base, or wire mesh, steel, or wood decking for loose and smaller product. |
| Base Size | Sized around the load, from units close to a standard pallet footprint to long units for bar stock, rolled goods, and other lengths. |
| Capacity and Stack Height | Each unit carries a rated load and a maximum stacking height from its manufacturer, and the bottom unit's posts carry everything above it. Both are checked against your heaviest real load, not the average one, and a stack never goes higher than its rating. |
| Floor | Level, sound concrete. A stack is only as plumb as the slab under the bottom unit, and unlike anchored rack it cannot be shimmed, so slope and slab damage matter more. |
| Forklift | Any truck that handles your loaded pallets at the stack's top height. Setting a unit onto a stack takes more operator care than setting a pallet on a beam, because the base has to land on the posts below. |
| Finish | Painted for dry indoor use; galvanized where units live outdoors, in wash-down areas, or in cold storage. |
| Cost Drivers | Unit count, base size, rated capacity, post height and style, deck type, finish, and freight, which depends on whether units ship assembled or broken down. |
| Fire Code | Stack racks are freestanding rather than anchored rack, but fire code follows storage height and commodity, not the storage method, so a tall stacked area can still trigger high-piled storage review. Requirements vary by jurisdiction. |
| What We Need to Quote | The heaviest load per unit and its dimensions, how high you want to stack, the forklift that will handle the units, whether they live indoors, outdoors, or in cold storage, and roughly how many units you need at peak. |
Brands We Carry
Built With Industry-Leading Components
How It Works
How to Tell Whether Stack Racks Fit Your Operation
A stack rack sits between two things most warehouses already do. Floor stacking costs nothing, but it is limited by what the bottom load can carry, and crushable or irregular product cannot go up at all. Pallet rack carries any load to any height, but it is fixed to the slab and costs the same whether it is full or empty. A stack rack is a steel base with four corner posts that carries its own load and the weight of the units above it, so product that could not be stacked can be, and the whole stack comes apart when you no longer need it. Each unit is handled by forklift like a pallet, and nothing is bolted to the floor.
What you give up is access. A stack is a column, so the unit on the bottom is the last one out, the same last in, first out logic as block stacking. That makes stack racks a strong fit for a few SKUs held in quantity and a poor one for a pick operation where any pallet might be needed next. Height is the other limit. Every unit carries a rated load and a maximum stacking height from its manufacturer, and the bottom unit's posts carry everything above them, so the stack is planned around the heaviest real load rather than the average one. When the need is permanent density for a handful of SKUs, drive-in racking does the same job without lifting units off one another. When every pallet needs its own position, selective pallet racks are the baseline.
Two things decide whether stacks stay safe in daily use. The floor comes first: a stack is only as plumb as the slab under the bottom unit, so a sloped or damaged floor is worth looking at before units arrive. Then handling: setting a unit onto a stack takes more care than setting a pallet onto a beam, because the base has to land on the posts below, and a bent post takes that unit out of service until it is replaced. Stack only like units of the same design together, since units built to different designs do not seat properly on one another.
We supply new stack racks, specified against the load, the stack height you need, and the forklift that will move them. When stack racks are one piece of a larger change to a building, they can be planned as part of a warehouse layout. For storage that does have to be anchored, our guide on whether pallet racking needs to be bolted down covers why fixed rack is a different case.
What You Get
Built In, Not Bolted On
Carries the Load Above It
The posts and base take the weight of the stack, so the product on the bottom carries nothing but itself.
Breaks Down When Empty
On removable-post designs, the posts come out and empty bases stack flat, giving the floor back between peaks.
Moves Like a Pallet
The base takes forks, so the forklift that handles your pallets handles the units, loaded or empty.
Best Suited For
Common Applications and Industries
Manufacturing
Work in process, castings, and parts that move between operations in the same unit they are stored in.
Warehouse Distribution
Seasonal overflow and reserve stock that swells for a few months and then shrinks.
Third-Party Logistics
Short contracts and leased buildings where a permanent rack install does not pay back before the customer moves on.
Agriculture
Bagged seed, feed, and fertilizer, and seasonal volume that cannot carry weight stacked on top of it.
Other Systems to Consider
Related Storage Systems
Drive-In Racking
Permanent high-density storage for a few SKUs held in quantity, without lifting one unit off another to reach the one below.
Learn More →
Selective Pallet Rack
Direct access to every pallet position, and the right answer when any pallet might be needed next.
Learn More →
Cantilever Rack
Long and irregular material that has to be reached one piece at a time rather than one unit at a time.
Learn More →FAQ
Common Questions
What is a stack rack?
A stack rack is a portable steel storage unit made of a base and four corner posts. Loaded units stack directly on top of each other, with the posts carrying the weight rather than the product, and a forklift handles each unit like a pallet. They are also called stacking racks, portable stacking racks, stackable racks, and stacking frames. Nothing is anchored to the floor, and on most designs the posts come out so empty bases can be stacked flat.
How high can stack racks be stacked?
As high as the manufacturer rates that unit for the load on it, and no higher. Most loaded units are rated somewhere in the three-to-five-high range, but the rating depends on post size, base design, and weight per unit, and the bottom unit carries everything above it. That means the stack height is set by the heaviest real load, not the average one. A level floor and a forklift that can place the top unit squarely set the practical limit too.
Do stack racks need to be anchored to the floor?
No. Stack racks are freestanding by design, which is what makes them portable. They do need a level, sound slab, because a stack is only as plumb as the floor under its bottom unit and it cannot be shimmed the way anchored rack can. Fire code is a separate question: it follows storage height and commodity rather than the storage method, so a tall stacked area can still trigger high-piled storage review. Fixed pallet rack is a different case, covered in our guide on whether pallet racking needs to be bolted down.
When should I use stack racks instead of pallet rack?
When the product cannot be floor stacked, the need is seasonal or short-term, the building cannot be drilled, or the same unit needs to serve as both storage and the container that moves product between operations. Pallet rack is the better answer when you hold many SKUs and need any pallet on demand, when the storage is permanent, or when you need height beyond what a stack is rated for. Selective pallet racks cover the first case and drive-in racking the permanent high-density one.
Can stack racks be used outdoors or in cold storage?
Yes, with the right finish. Painted units suit dry indoor storage. Galvanized units are the usual choice outdoors, in wash-down areas, and in cold storage, where condensation and moisture would attack a painted finish. Outdoor stacks still need a level, sound surface under the bottom unit.
What drives the cost of stack racks?
Unit count first, then base size and rated capacity, post height and whether the posts are removable, deck type, finish, and freight, which depends on whether units ship assembled or broken down. What belongs on the other side of the ledger is what the units avoid: product crushed in floor stacks, or fixed rack standing empty after the peak. Send us your load details through contact and we will quote them.
