Column Protectors and End-of-Aisle Guards That Take the Hit Instead of Your Uprights

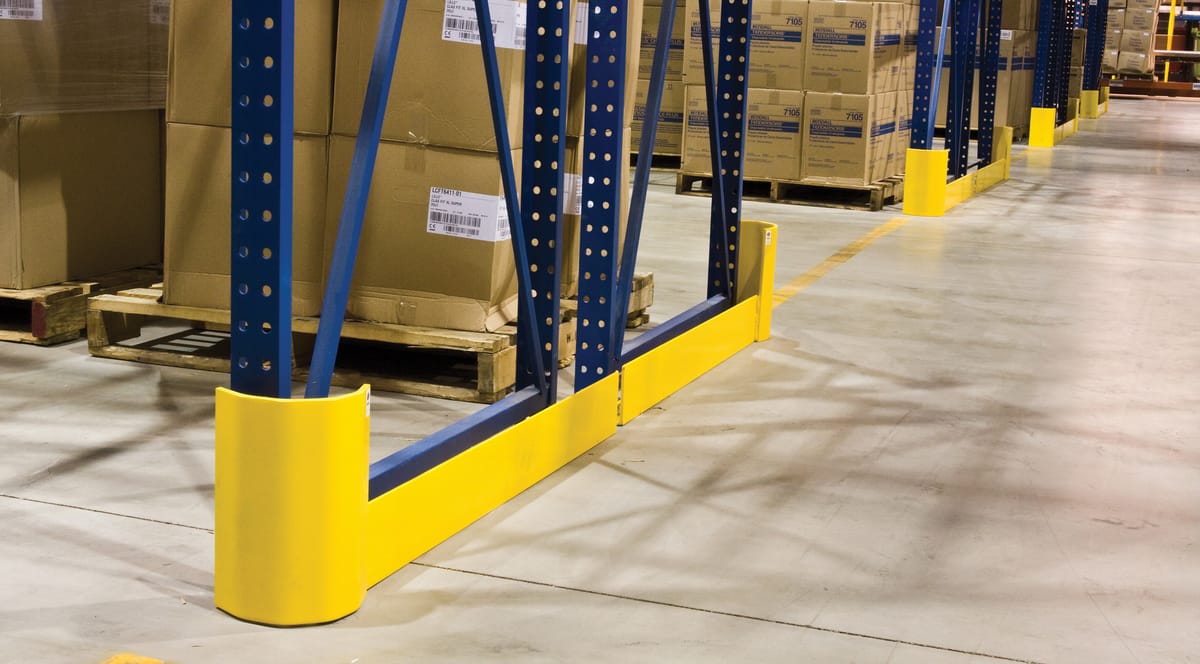

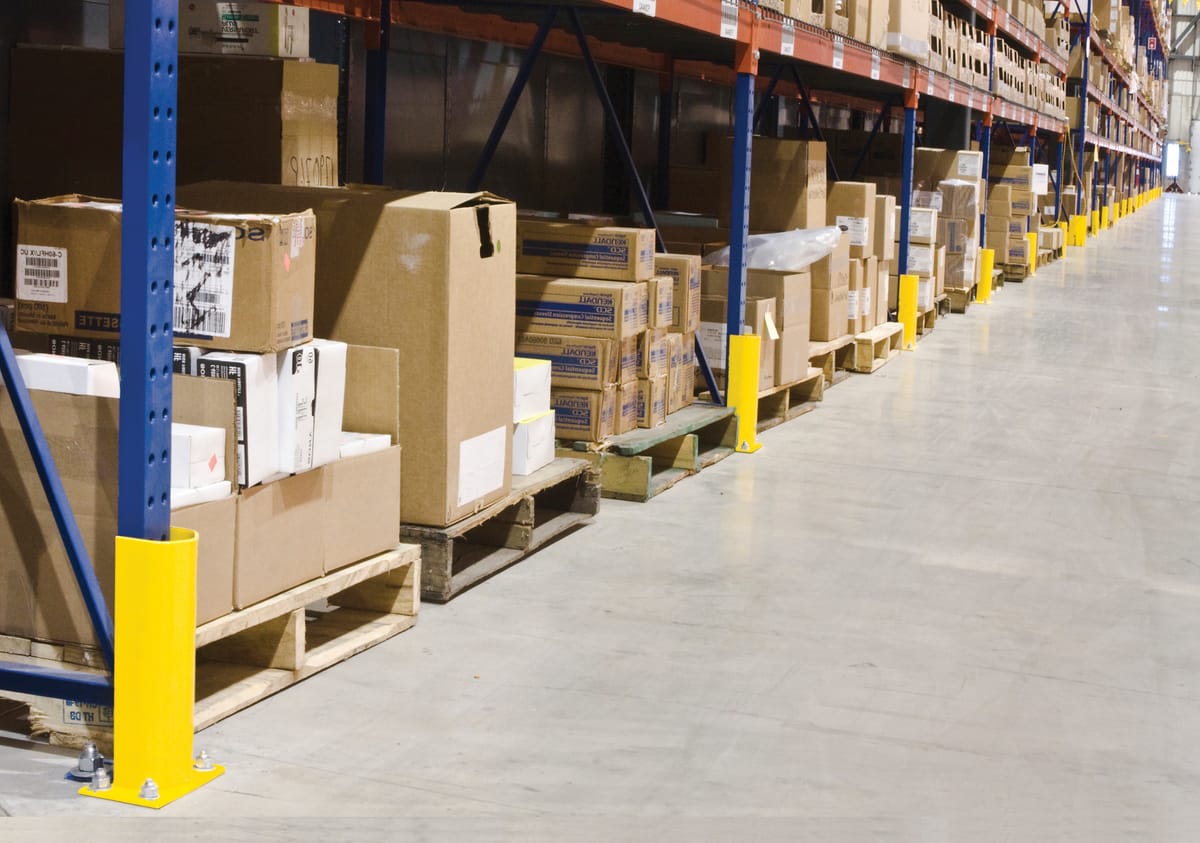

A column protector wraps or bolts to a single upright to absorb impact at that one position, and comes in 12", 18", and 24" heights. An end-of-aisle guard protects the exposed end of an entire rack row and is a separate floor-anchored assembly, deliberately low profile at around 12" so it stops a truck without interrupting aisle flow or pick access. The distinction matters because the consequences differ. Mid-aisle damage usually stays in the bay or two where it happened. Damage at a row end can spread further, since the end frame anchors the row, so a hit there sometimes affects the alignment of adjacent bays as well. That is why row ends are the first position worth protecting.

No, and specifying them everywhere is a common way to overspend. Focus on aisle-facing columns at the first and last bays of each row, cross-aisle intersections, columns near dock doors and staging, and any column with a damage history. For a fuller walkthrough of placement, see our guide on where guards, bollards, and guardrails go.

Column protectors are priced per guard and are among the cheaper line items on a rack project. End-of-aisle protection costs more, since those are heavier floor-anchored assemblies. What moves your total is how much of the system you guard, whether you are using polymer or steel, and whether anchoring is involved. Set against that, replacing one damaged upright carries the cost of unloading the bay, disassembly, an engineered replacement component, labor, and downtime. For how protection fits a full project budget, see our warehouse racking project budget guide.

They fail differently. Steel is the standard for heavy-duty warehouse protection, typically a wrap-around crescent on an anchored base plate, and it takes hard impact without deforming out of service. Polymer guards flex and absorb instead, which suits repeated low-speed contact and installations where you would rather the guard give than transmit force. The deciding factors are your fleet weight and travel speed. Heavier fleets point toward steel, or toward floor-anchored protection that keeps the force off the frame entirely.

Guards themselves are not mandated. The real issue is damage: once an upright is compromised and nothing is done about it, you have a problem whether or not guards were ever installed. Protection is how you avoid generating that damage in the first place, and inspection is how you catch it when it happens anyway. For what is expected of you once a system is loaded and in use, see our pallet rack OSHA requirements guide and our safety inspection service.

Usually yes. Wrap-around and bolt-on guards are designed to install around an existing upright without disassembling the bay, so they can go on a live loaded system. Floor-anchored guards and end-of-aisle frames are different, because they require concrete anchoring and enough working clearance, which sometimes means clearing the adjacent bay for the install.

No. Guards prevent future impact but do nothing for existing deformation, and a bent or bowed upright does not recover its rated capacity on its own. Damaged rack needs to be assessed and either repaired or replaced first, then protected. We handle that through safety inspections to document the current condition and repair and maintenance to correct it.
