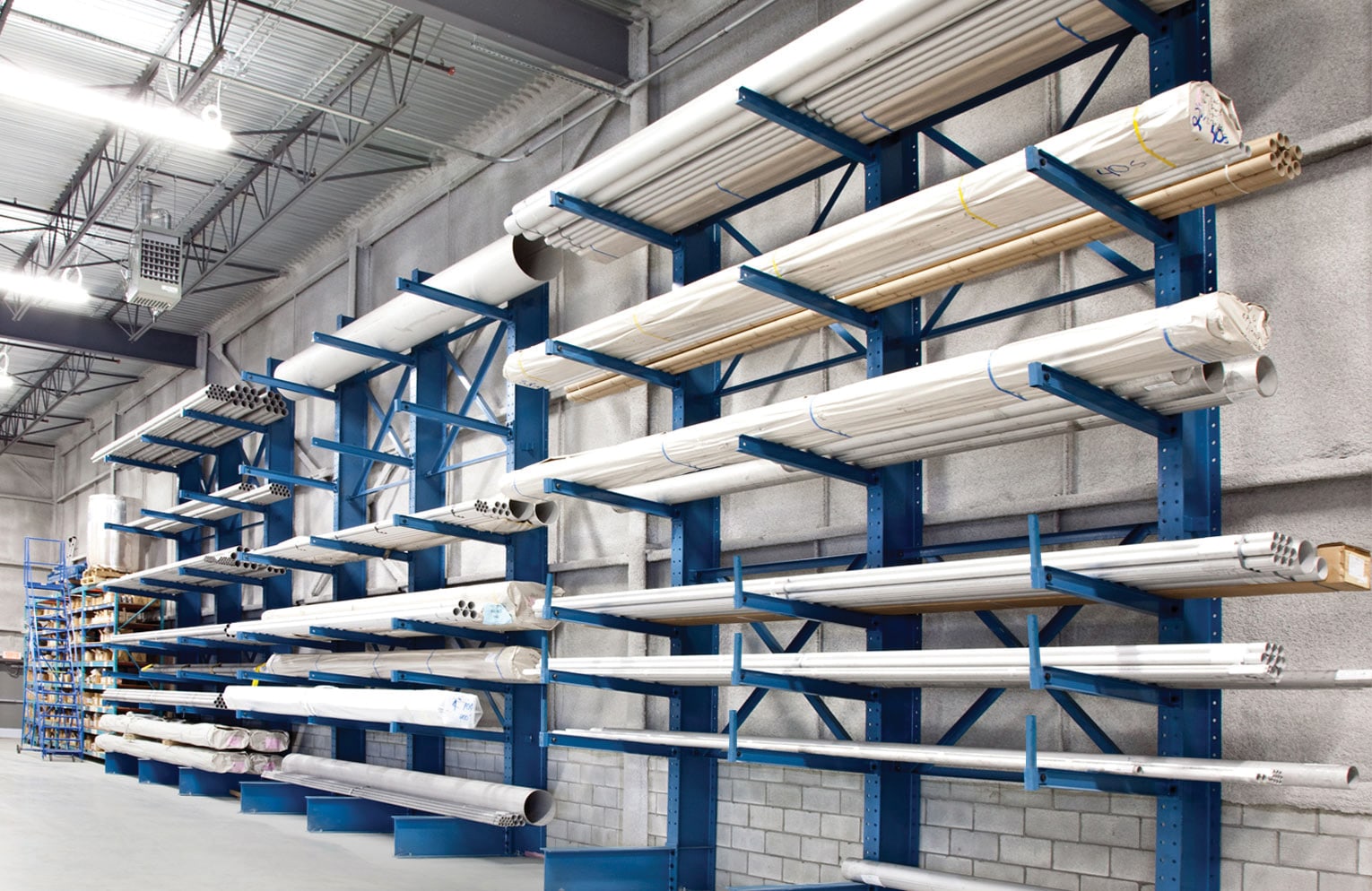

Cantilever Rack Capacity: How to Read It
By David Scelfo, Director of Marketing
Ask what a cantilever rack holds and you'll get two answers, both correct, and they can differ by a factor of ten.
One is what a single arm carries. The other is what the entire upright carries. People quote them interchangeably, and the result is a system that satisfies its arm rating on every level and is still overloaded as a whole. That's the most common specification error in cantilever, and it happens before anything gets installed.
This guide covers how cantilever capacity is actually derived, so you can read a spec sheet without being misled by it.
The Two Ratings
Per-arm capacity
What a single arm will carry, at a stated arm length, with the load distributed along it.
Published ranges run from a few hundred pounds on medium duty arms up to around 3,000 pounds on standard heavy duty, and roughly 4,000 pounds on extra heavy duty. This is the number that decides whether a given bundle, coil, or lift of material can sit on one level.
Column (total) capacity
The cumulative load of every arm on one upright, added together. Medium duty uprights are commonly rated somewhere in the 3,000 to 8,000 pound range. Extra heavy duty uprights reach roughly 28,700 pounds per side, and a double-sided upright roughly doubles that.
Manufacturer data typically states the relationship directly: compute the upright load by multiplying the number of arms by the individual arm capacity, not to exceed the total upright capacity listed. That second clause is the whole point, and it's the one people miss.
Consider an upright with six arm levels, each holding 2,500 pounds. Every arm is comfortably inside a 3,000 pound rating. The column is carrying 15,000 pounds per side, and whether that's acceptable depends entirely on the column rating, which nobody checked.
Both ratings have to clear your actual loading. Passing one proves nothing about the other.
The column rating isn't one number
Here's the part that surprises people who go looking for "the" capacity of an upright: the same column is rated differently depending on the arms and base you put on it.
On one published extra heavy duty range, a 10 foot upright with 24 inch arms on a 40 inch base is rated 28,700 pounds. The same 10 foot upright with 60 inch arms on a 76 inch base is rated 14,900. Identical column, roughly half the capacity, because longer arms move the load further out and the base has more overturning moment to resist.
So "what does this upright hold" has no answer until you've also specified arm length and base length. Any capacity figure quoted without both is incomplete.
Why Longer Arms Carry Less
An arm is a cantilever beam. Supported at one end, free at the other, with the load trying to bend it down and rotate the column it's bolted to.
The force doing that is the bending moment, and it's the load multiplied by how far out from the column it sits. Move the same weight further out and the moment rises in proportion. The weight hasn't changed. What the steel has to resist has roughly doubled if you've doubled the distance.
Three consequences worth internalising:
An arm rating without a length is meaningless. "3,000 pound arms" is not a specification. "3,000 pounds at 48 inches" is.
Capacity drops steeply as you extend. A 60 inch arm and a 36 inch arm from the same product family are not the same component with different reach. On one published heavy duty range, arm capacity falls from 3,000 pounds at 12 inches to 600 pounds at 60 inches. That's an 80% reduction across the length options in a single product line. Longer arms aren't slightly derated. They're a different capacity class.
Where the load sits on the arm matters as much as its weight. Which leads to the next point.
Arms are pitched on purpose
Straight arms aren't level. They're manufactured with a slight upward pitch toward the tip, commonly around 3/8 inch per foot on arms up to 48 inches and steeper, around 5/8 inch per foot, on longer 54 and 60 inch arms.
That pitch is designed-in deflection compensation. Under load the arm settles toward level. So a cantilever arm that looks like it's sagging may be doing exactly what it was built to do, while one that sits below level under load is telling you something worth investigating. Knowing which is which saves an unnecessary service call, and catches a real problem when there is one.
Lips retain, they don't support
Arms are available with or without a lip at the tip, and the lip is what stops round or rolling stock migrating off the front. It is not a load-bearing element. Manufacturer data is usually explicit that arm lips are not intended to carry any portion of the load.
The practical version: a lip does not extend usable arm length, and material resting against it rather than on the arm is not supported the way the rating assumes.
Distributed Load Versus Point Load
Published arm capacities are generally based on a uniformly distributed load, meaning weight spread evenly along the arm.
Real product often isn't. A single dense coil, a short heavy bundle, or a machine base sitting near the arm tip is a concentrated point load, and it produces a far higher bending moment than the same total weight spread across the arm's length. The scale on the receiving dock reads the same. The steel experiences something quite different.
If your product loads the arm at a point rather than along it, say so when the system is specified. That condition has to be engineered for directly, not assumed away.
Roll-Formed Versus Structural
The two constructions are not interchangeable, and the choice is driven by load and environment more than by budget.
Roll-formed cantilever is made from steel shaped cold through rollers. Lighter, less expensive, quicker to reconfigure. It suits light and medium duty: lumber, trim, moulding, and moderate bundle weights.
Structural cantilever is fabricated from hot-rolled structural steel sections, typically bolted rather than clipped. It carries substantially more per arm and per column, and it takes forklift contact better. It's the normal choice for steel service centers, pipe and tube, bar stock, and anything with heavy point loads.
The honest way to decide is by load case and by what happens when a forklift catches an arm, not by price per bay. A roll-formed system asked to do structural work doesn't fail gracefully.
The Base Is Part of the Capacity
This is the part that gets treated as installation detail and is really engineering.
Every load sitting out on an arm is trying to tip the upright over. The base, the horizontal member at floor level, and the anchors holding it down are what resist that overturning moment. So:
Base length is sized against arm length and load. Longer arms and heavier loads need a longer base to develop the resisting moment. You can't extend arms on an existing system and leave the base alone.
The anchors have to develop the required force in your actual slab. Slab thickness, concrete strength, reinforcement, and the condition of the floor all decide whether the specified anchor achieves its rated pullout. A slab that can't develop that force limits the system no matter what the steel is rated for. Our guide to whether racking needs to be bolted down covers the anchoring principles in more detail.
Height, seismic region, and outdoor exposure add requirements. Tall systems, high seismic design categories, and outdoor installations facing wind load all raise what the base and anchors have to resist. Outdoor cantilever also needs corrosion protection specified from the start.
Single-Sided and Double-Sided
A single-sided system loads from one face and is typically placed against a wall or in a space-constrained run. All of the overturning moment acts in one direction, which generally means a longer base on the loaded side.
A double-sided freestanding system loads from both faces. Loads on opposite sides partially counteract each other, which is structurally efficient, but the design case is the unbalanced one: fully loaded on one side and empty on the other. That's a normal operating condition, not an edge case, and it's what the base gets sized for.
Arm Spacing and Usable Capacity
Vertical arm spacing decides how many levels you get and how the load spreads. Closer spacing means more arms sharing the total, more support points under long or flexible material, and less deflection between them. It also means more arms contributing to the column total, which is exactly the sum people forget to run.
Sheet goods and anything that sags between support points need tighter spacing or decking across the arms. Long rigid bundles tolerate wider spacing. The applications guide covers how spacing changes by product type.
Where Capacity Gets Read Wrong
The errors repeat, and all of them are avoidable at specification:
- Arm rating quoted with no arm length. The single most common one.
- Column total never summed. Every arm passes, the upright doesn't.
- Point loads checked against distributed ratings. The number on the spec sheet doesn't apply to how the product actually sits.
- Arms extended on an existing system without revisiting the base, the anchors, or the column total.
- Heaviest load averaged away. Capacity is set by the worst case on that level, not the typical case.
- A rack reused for different product after a facility change, on the assumption that steel that looked adequate before is adequate now.
- Damaged uprights left in service. A column with a bent or gouged section no longer carries its rated load, and cantilever concentrates everything into that one member. Our rack protection guide covers damage assessment.
What to Have Before You Spec
- Heaviest individual load, not the average, and how it sits on the arm
- Product length and depth, which set arm length, which sets arm capacity
- Loads per level and the sum across all levels on one upright
- Whether loading is distributed or concentrated
- Single or double sided, and whether unbalanced loading is routine
- Slab thickness, concrete strength, and condition
- Seismic design category, and wind exposure if outdoors
- Whether forklift contact is likely, which pushes toward structural
Getting the Numbers Right
Cantilever is unusually unforgiving about capacity because everything concentrates. A pallet rack bay spreads load across two beams and four column connections. A cantilever arm puts the entire load into one connection at one point on one column, and the base has to hold that column upright.
That's not a reason to over-specify. It's a reason to engineer to your real product weights and dimensions rather than to a catalog assumption, and to check both ratings rather than the one that happens to be printed largest.
We design cantilever systems around actual inventory weights and dimensions, run the column totals and base anchoring against your slab, and handle engineering, permitting, and installation nationwide. Request a consultation to spec a system for your product, or see our cantilever rack solutions for configuration options and the applications guide for what cantilever stores beyond lumber.
Frequently asked questions
What is the weight capacity of a cantilever rack?
Cantilever rack has two separate ratings and both matter. Per-arm capacity, meaning what one arm carries, runs from a few hundred pounds on medium duty up to around 3,000 pounds on standard heavy duty arms, with extra heavy duty arms rated to roughly 4,000 pounds. Column capacity, meaning the cumulative load of every arm on one upright, is much higher: medium duty uprights are commonly rated in the 3,000 to 8,000 pound range and extra heavy duty uprights reach roughly 28,700 pounds per side, which doubles on a double-sided upright. A system can satisfy the per-arm rating on every level and still exceed what the column is rated to carry, which is why both numbers have to be checked against your actual loads.
Why do longer cantilever arms hold less weight?
An arm is a cantilever beam, supported at one end and free at the other, so the load creates a bending moment at the connection to the column. That moment is the load multiplied by how far out it sits. Move the same weight further from the column and the force trying to bend the arm and twist the column goes up in proportion, even though the weight hasn't changed. Published arm ratings are therefore always tied to a specific arm length, and a rating quoted without its length is not usable information.
What is the difference between roll-formed and structural cantilever rack?
Roll-formed cantilever is made from steel shaped cold through rollers. It is lighter, less expensive, and suited to light and medium duty work such as lumber, trim, and moderate bundle weights. Structural cantilever is fabricated from hot-rolled structural steel sections, typically bolted rather than clipped together, and carries substantially more per arm and per column. Structural is the normal choice for steel service centers, pipe, bar stock, and any application with heavy point loads or forklift contact risk.
Do cantilever rack capacity ratings assume the load is spread out?
Usually yes, and this catches people. Published arm ratings are generally based on a uniformly distributed load across the arm. A concentrated point load, such as a single dense coil or a short heavy bundle sitting near the arm tip, produces a much higher bending moment than the same total weight spread evenly. If your product loads the arm at a point rather than along its length, the arm has to be engineered for that condition specifically.
How is cantilever rack anchored and does the base affect capacity?
The base is part of the capacity calculation, not an afterthought. Loads sitting out on the arms create an overturning moment that the base and its anchors have to resist, so base length is sized against arm length and load, and the anchors have to develop that force in your actual slab. Slab thickness, concrete strength, and reinforcement all matter, and a slab that can't develop the required anchor capacity limits the system regardless of what the steel is rated for. Tall systems, seismic regions, and outdoor installations add further requirements.
Can you increase the capacity of an existing cantilever rack?
Sometimes, but rarely by the route people expect. Adding arms spreads load across more support points and can raise what the system stores in total, as long as the column and base ratings still clear the new cumulative load. Shortening arms raises per-arm capacity because the bending moment drops. What you cannot do is assume that a rack rated for one product will carry a heavier one because it looks strong. Any change to loading should go back through the manufacturer's engineered data or a qualified engineer.
